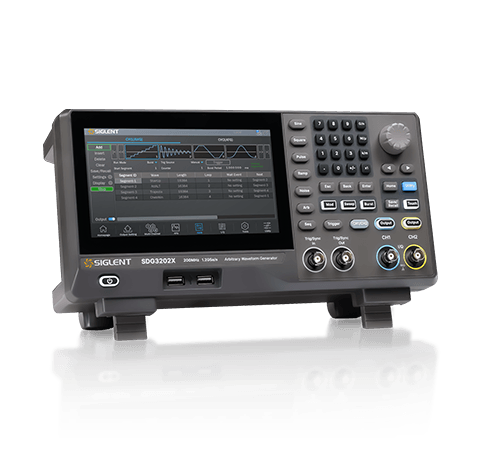

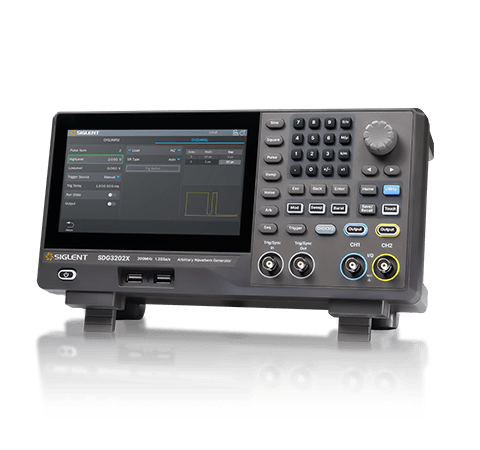

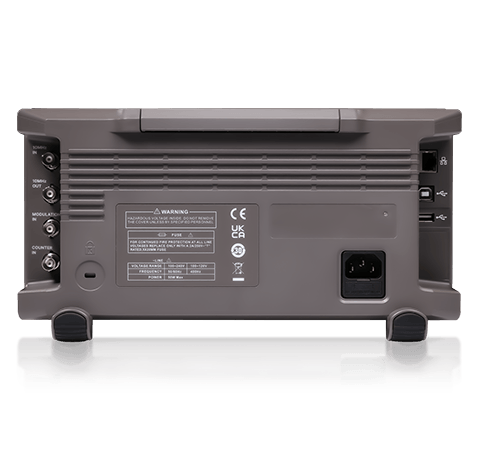

SDG3000X Function/Arbitrary Waveform Generators
Main Features
- Output frequency: 80/160/200MHz
- Sampling rate: 1.2 GSa/s
- Vertical resolution: 16-bit
- Arbitrary waveform length: Up to 40 Mpts/ch
- Supports dual pulse output function
×

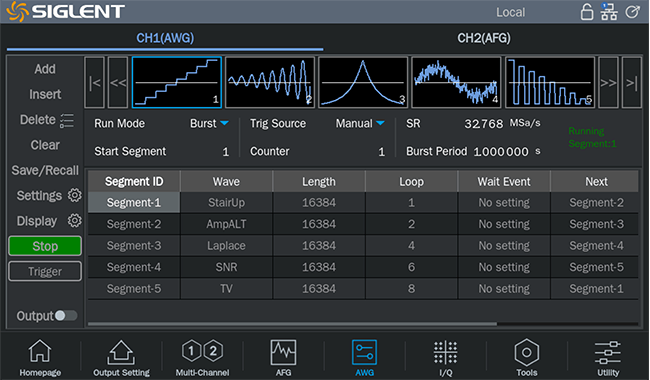

Advanced Arbitrary and Complex Signal Generation
With 196 built-in arbitrary waveforms and a memory depth of up to 40 Mpts per channel, the SDG3000X provides the capacity to store and accurately reproduce complex signals. It also features a flexible sequence mode, allowing users to define playback order and loop counts for each waveform segment—ideal for custom and repetitive test scenarios.

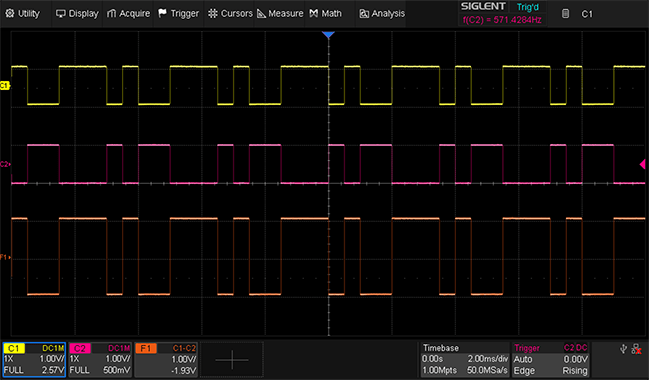

PRBS Signal Output
It supports PRBS signal output up to 120 Mbps, baseband and IF IQ signal generation with symbol rates from 250 to 50 MSymb/s, and a wide range of modulation types including AM, DSB-SC, FM, PM, FSK, ASK, PSK, and PWM. With built-in Sweep and Burst modes, the SDG3000X delivers comprehensive support across a variety of test environments—from education and R&D to industrial power device testing.

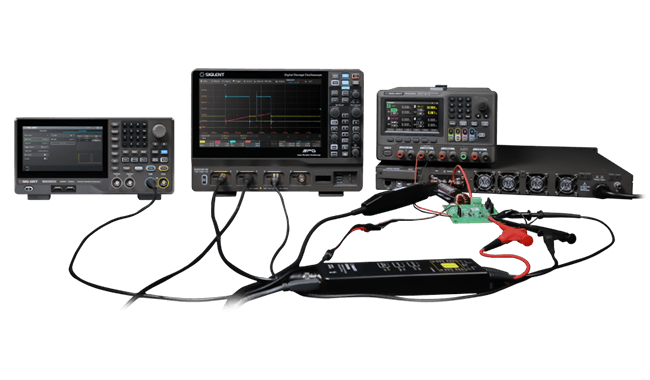

Double-Pulse Testing
Double-pulse testing is critical in analyzing the dynamic behavior of power semiconductor devices such as IGBTs and SiC MOSFETs, particularly for evaluating switching losses and conduction characteristics. The SDG3000X offers an ideal platform for this application.
With channel tracking and phase synchronization, users can precisely control pulse widths and timing intervals to simulate realistic switching behavior. Combined with remote control via USB/LAN, and oscilloscope synchronization, the SDG3000X simplifies the creation of automated test systems—enhancing both testing efficiency and data reliability.
With channel tracking and phase synchronization, users can precisely control pulse widths and timing intervals to simulate realistic switching behavior. Combined with remote control via USB/LAN, and oscilloscope synchronization, the SDG3000X simplifies the creation of automated test systems—enhancing both testing efficiency and data reliability.

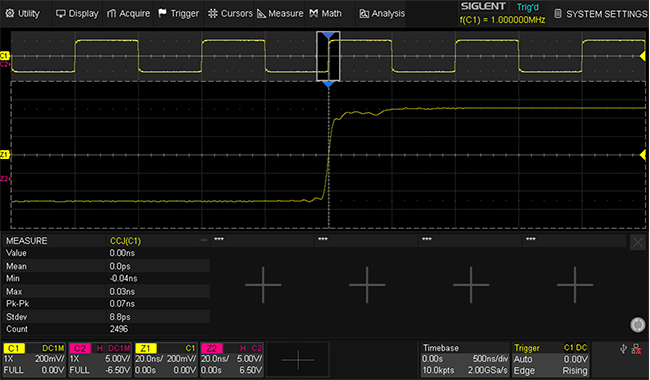

High-Fidelity Signal Generation
The SDG3000X EasyPulse technologies is optimized for pulse signal generation. It is capable of producing pulses as narrow as 8 ns with fast rising/falling edges that remain stable across frequency variations. It allows for wide-ranging, fine-grained adjustments of edge timing and pulse width, making it ideal tool for generating high-precision pulse signals.

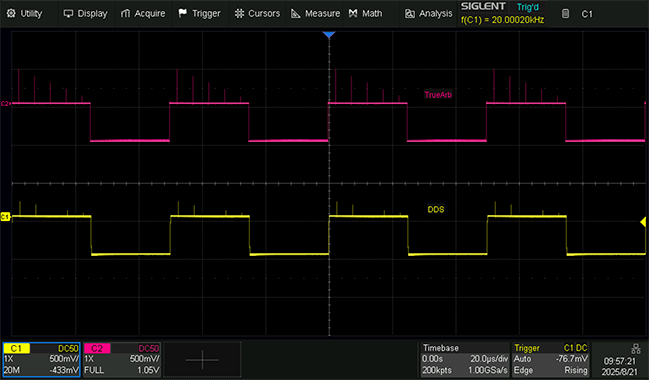

Precision Signal Output
TrueArb enables point-by-point waveform generation across a sampling range of 10 mSa/s to 600 MSa/s, maintaining waveform integrity while delivering ultra-low jitter (as low as 150 ps) and total harmonic distortion (THD) below 0.075%, ensuring superior signal fidelity.

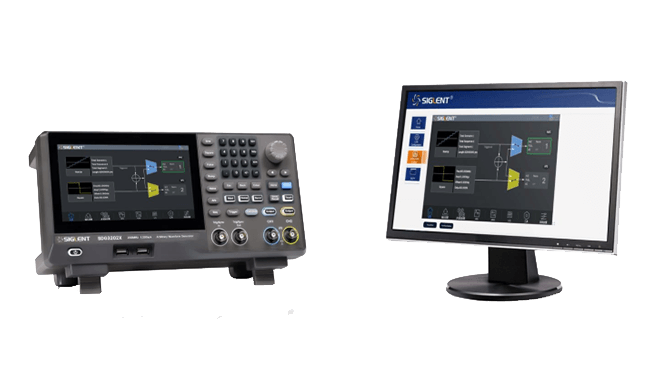

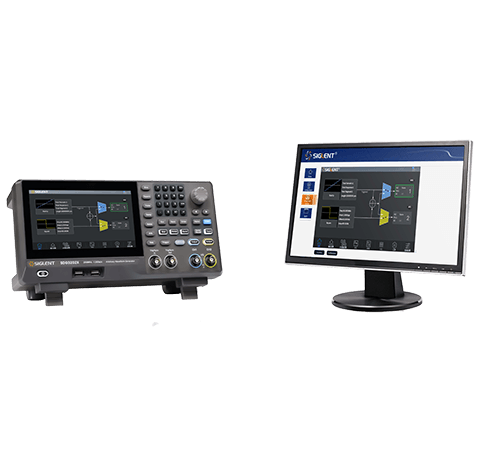

Intelligent User Experience
Equipped with a 7-inch touchscreen, the SDG3000X allows intuitive parameter settings and signal viewing. It supports MATLAB and Python script import and oscilloscope linkage for automatic calibration. A built-in high-precision frequency counter, along with multiple communication interfaces such as LAN, USB, and GPIB, and a built-in WebServer, ensures easy remote access and synchronization across multiple devices—streamlining workflows and boosting productivity.
Specifications
| Bandwidth | 80 MHz , 160 MHz, 200 MHz |
| Sample Rate | 1.2 GSa/s (2X Interpolation) |
| Channels | 2 |
| Vertical resolution | 16 bit |
| Arbitrary waveform length | 20 Mpts/ch (40 Mpts/ch Optional) Support sequence |
| Display | 7” touch screen |
| Interface | Standard: USB Host, USB Device, LAN Optional: GPIB (USB-GPIB adaptor) |
Model
Max output frequency
Max sampling rate
Vertical resolution
Waveform length
Channels
SDG3082X
80 MHz
1.2 GSa/s
16-bit
40 Mpts/ch
2 CH
SDG3162X
160 MHz
1.2 GSa/s
16-bit
40 Mpts/ch
2 CH
SDG3202X
200 MHz
1.2 GSa/s
16-bit
40 Mpts/ch
2 CH
